EPRI Structure Strain Monitor

What:
The Structure Stain RF Monitor is a specialized device designed to measure the output from two strain gauges attached to a substrate. It is capable of monitoring both static and dynamic loads, providing comprehensive data on the structural integrity of materials. The device incorporates advanced algorithms to facilitate various strain diagnostic methodologies, such as rainflow counting, which is essential for fatigue analysis.
  • What1.jpg Structure Strain RF Monitor
How:

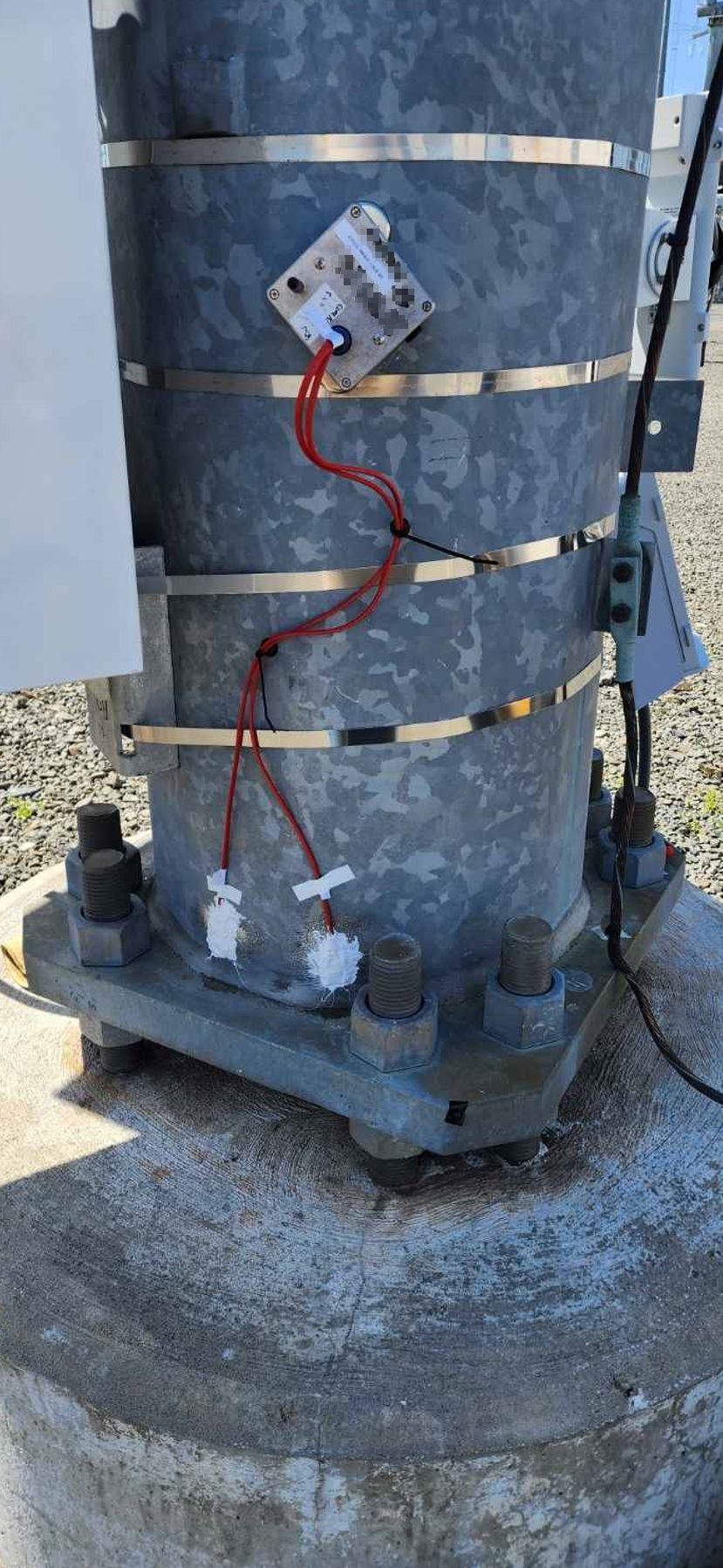

The device operates by capturing the strain data from the gauges, which are sensitive to changes in the material’s deformation. These gauges convert mechanical strain into electrical signals, which the RF Monitor then processes. The embedded algorithms analyze these signals to differentiate between static and dynamic loads, enabling precise monitoring and diagnostics. This process allows for real-time assessment and long-term tracking of material performance under different stress conditions.
  • Strain LQ1.jpg
Why:
The Structure Stain RF Monitor is used primarily to evaluate the failure of welds and other critical structural components. By providing detailed insights into the strain experienced by materials, it helps in predicting potential failures and extending the lifespan of structures. This is particularly valuable in industries where safety and reliability are paramount, such as construction, aerospace, and manufacturing. The ability to perform accurate fatigue analysis through methodologies like rainflow counting makes it an indispensable tool for engineers and maintenance professionals.
  • Stain LQ2.jpg
